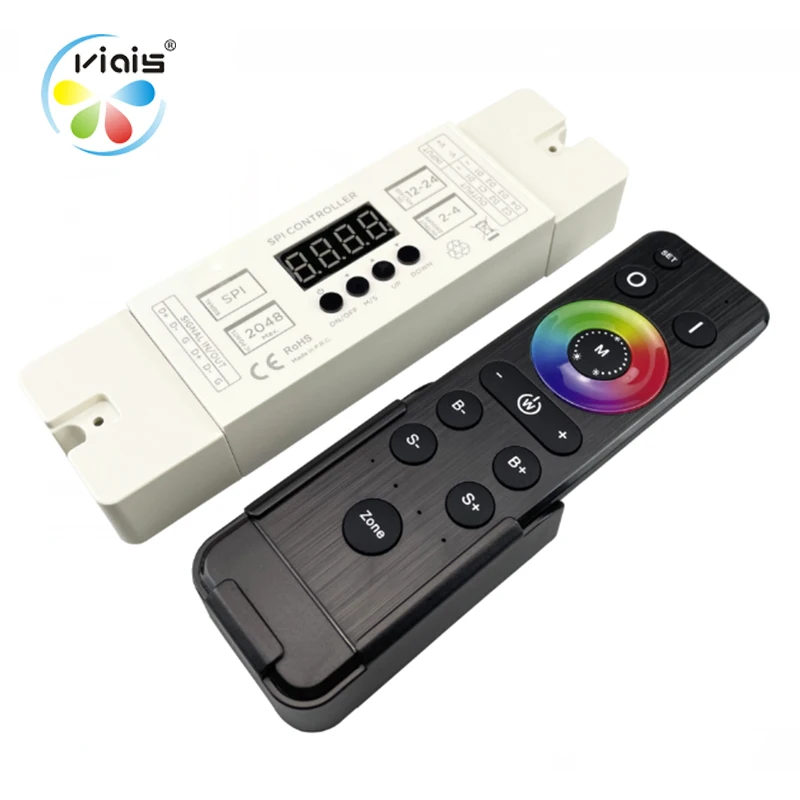

DC12V/24V Led Pixel Smart Strip RGB RGBW Remote Control Signal Digital LED Controller

Size : L162*W46*H25mm
Number of pixels : 2048 pixel
Control mode : Manual; Remote Control
Input voltage : DC12-24V
Speed Control : adjustable

Product Feature

1. Designed as 4 in 1 controller for DIM/CCT/RGB/RGBW constant voltage LED lights.
2. DC12-24V, four channels output, Max. load current: 4CH*6A; Max. load power: 288W/12V; 576W/24V.

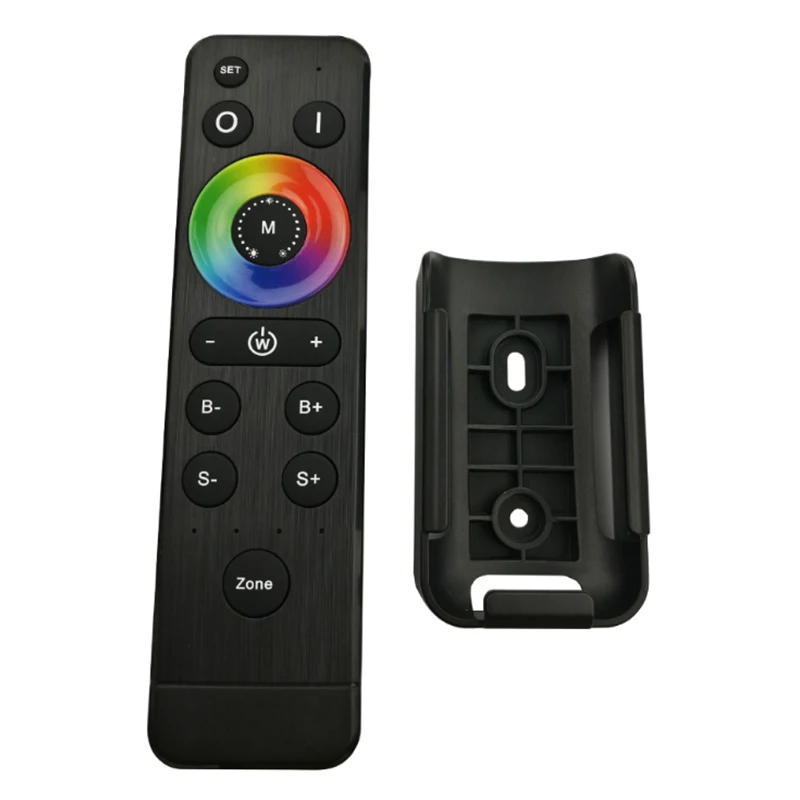

3. Adopts RF remote control, no need line-of-sight. Control range up to 20 meters.
4. Wireless-sync-control in both static color and dynamic modes, unlimited by remote control distance.
5. Memory function, each time power-on reserve the mode which stop in the last power-off.
6. Perfect control effect, including 1024 static colors(RGB/RGBW) and soft dim function.
7. The brightness of static color is adjustable, 1024 levels in total; the speed of dynamic changes is adjustable, 100 levels in total.
8. Long-press the brightness and speed key can get the fast adjustment, convenient for operation.
9. Short circuit protection.
