Gaming Mini PC Dedicated Graphics MSI GTX1650 4G Core i5 9400f i7 9700f 9750H 2xDDR4 HD DP DVI 3*4K Display Portable PC Gamer
Highlight
– 2xSODIMM DDR4 memory slot, up to 64GB more powerful performance and smooth experience.
-Support NVIDIA MSI GeForce GTX 1650 4GB DDR5 discrete graphics.
– Brushed Aluminum Alloy Silver color shell, Exquisite production cration outside design.
– Support DP+HDMI+DVI three display output synchronously, max support 8K display output.
– Can install M.2 SSD(support NVME high speed SSD) and 2.5” SATA HDD together.
*Coffee Lake 14nm Intel Core i3-9100F 3.6GHz up to 4.2GHz(Turbo boost Technology) 4 Cores 4 Threads 6MB Smart Cache TDP 65W, *Coffee Lake 14nm Intel Core i5-9400F 2.9GHz up to 4.1GHz(Turbo boost Technology) 6 Cores 6 Threads 9MB Smart Cache TDP 65W, *Coffee Lake 14nm Intel Core i7-9700F 3.0GHz up to 4.7GHz(Turbo boost Technology) 8 Cores 8 Threads 12MB Smart Cache TDP 65W
Xeon-D1581( K620 2G）with DP+DVI display port ,no HDMI,
Specification
|
Basic Information:
|
||
|
CPU
|
Intel Core i7 8750H/Intel Core i7 9750H
|
|
|
TDP
|
65W
|
|
|
Memory
|
2 x SO-DIMM DDR4 slot, up to 64GB
Dual Channel, DDR4-2400/DDR4-2666 |
|
|
OS
|
Windows 8/Windows 10/Linux
|
|
|
PXE
|
YES
|
|
|
Audio
|
ALC662 audio chip, 6-channel
|
|
|
Network
|
Onboard RTL 8111DL 10/100/1000 BaseT LAN
|
|
|
Video
|
Nvidia GTX 1650 4GB DDR5 graphics and refer to CPU about integrated graphics
|
|
|
Input/output port:
|
||
|
Switch
|
1 x Power On/Off Switch
|
|
|
Power
|
1 x 19V DC In
|
|
|
LED
|
1 x LED
|
|
|
USB
|
5 x USB2.0, 2 x USB3.0
|
|
|
Display
|
1 x DP, 1 x HDMI, 1 x DVI, can switch VGA connector
|
|
|
LAN
|
1 x RJ45 Giga LAN
|
|
|
Audio
|
1 x MIC, 1 x SPK
|
|
|
Storage:
|
||
|
M.2
|
1 x M.2 slot for SSD, support NVME SSD
|
|
|
SATA
|
1 x SATA3.0 slot for SATA HDD or SSD, support 6Gb/s
|
|
|
Wi-Fi
|
||
|
Module
|
1 x M.2 PCIE slot for Wi-Fi module
|
|
|
Antenna
|
2 x inner RF cables and 2 x external antennas
|
|
|
Power and Working Environment:
|
||
|
Input
|
DC100-240V AC/50-60Hz
|
|
|
Output
|
DC 19V, recommend 19V/9.5A
|
|
|
Operating Temperature
|
0/+70 Centigrade
|
|
|
Storage Temperature
|
-20/+80 Centigrade (-68~176°F)
|
|
|
Relative Humidity
|
10%~90% (non-condensing)
|
|
|

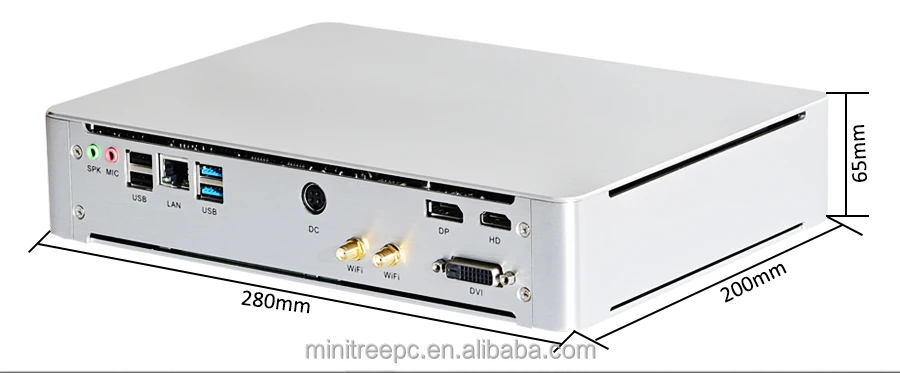

Product Dimension & Details:
|
||
|
Size
|
280x200x52mm
|
|
|
Weight
|
Net 2kg, Gross 3.0kg
|
|
|
Shell
|
Silver color aluminum alloy
|
|
|
Cooling Mode
|
Cooling Fan
|
|
|
Functions
|
Auto power on
|
|
|
Package Content:
|
||
|
Standard
|
1xMini PC, 1xPower Adapter, 1xPower Cord, 1xScrews Bag
|
|
|
Optional
|
Wi-Fi antennas, 1xHDMI cable, 1xUser Manual
|
|
