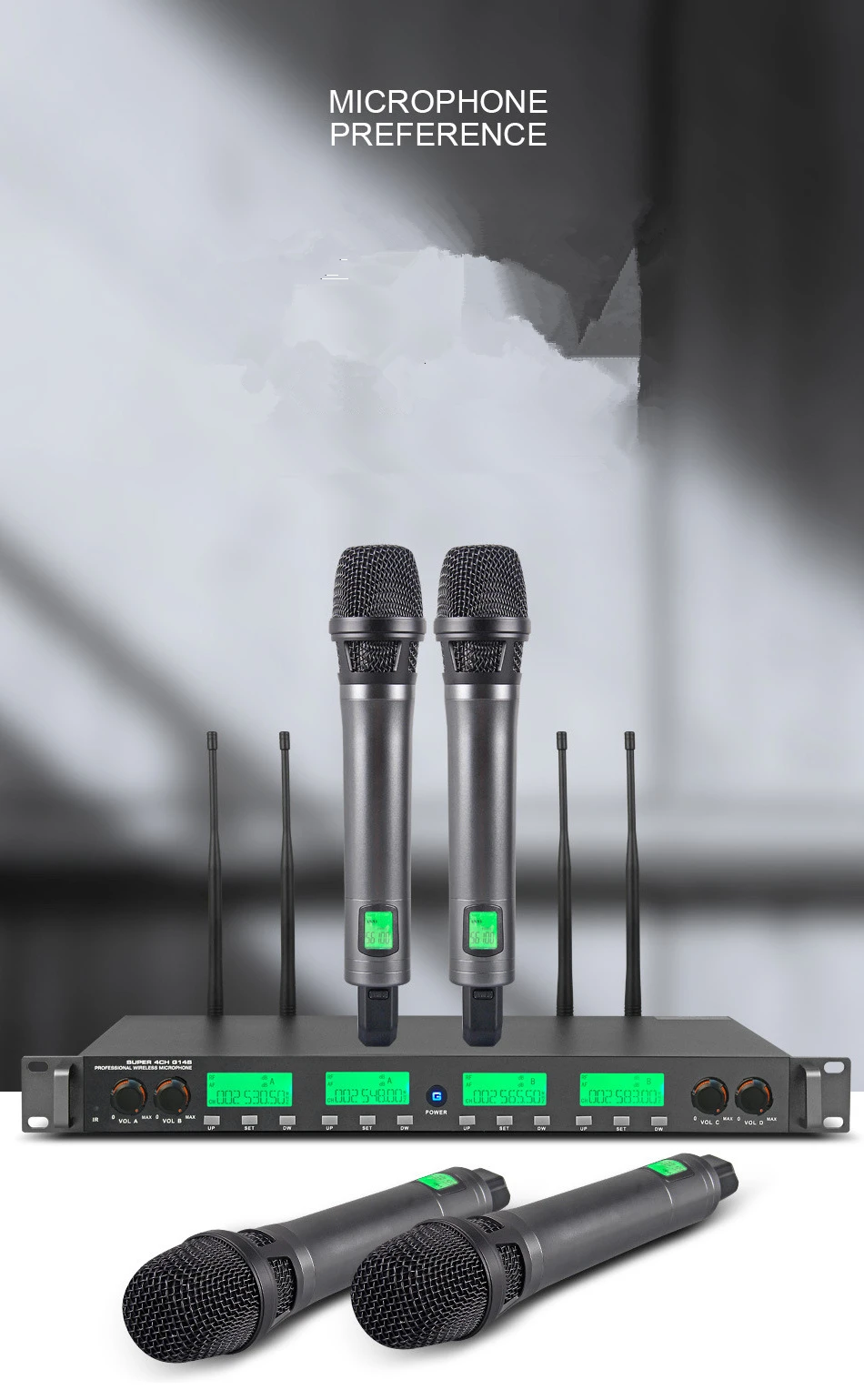

LOW MOQ OEM 200-300m receiver range Digital 4 channel UHF PLL wireless microphone with four handheld/headset/lavalier microphone

 Carrier frequency range: 610MHz-960MHz (depending on the applicable country range) Modulation

method: FM frequency modulation Maximum frequency deviation: ±45KHz Frequency response: 50Hz-15KHz Signal to noise ratio (S/N):

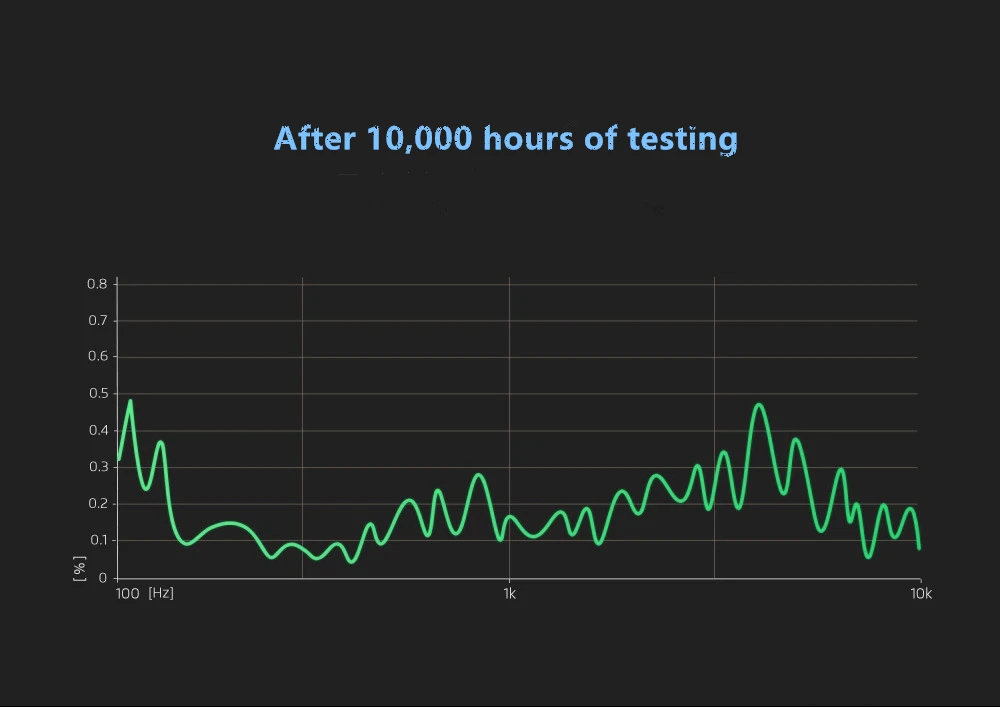

>105dB(A) Distortion: (1KHz): <0.3% Working temperature: -10℃~55℃ Working distance: 80 meters (under ideal environment)

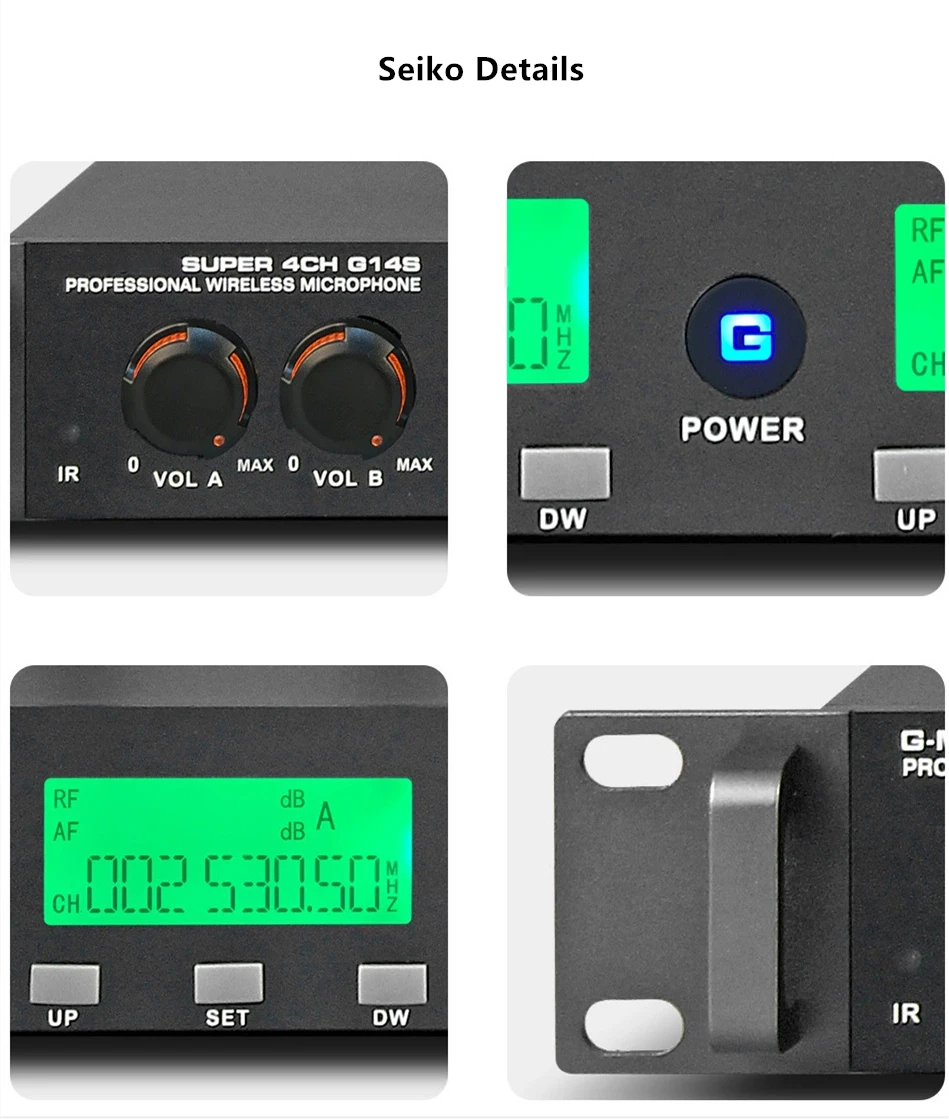

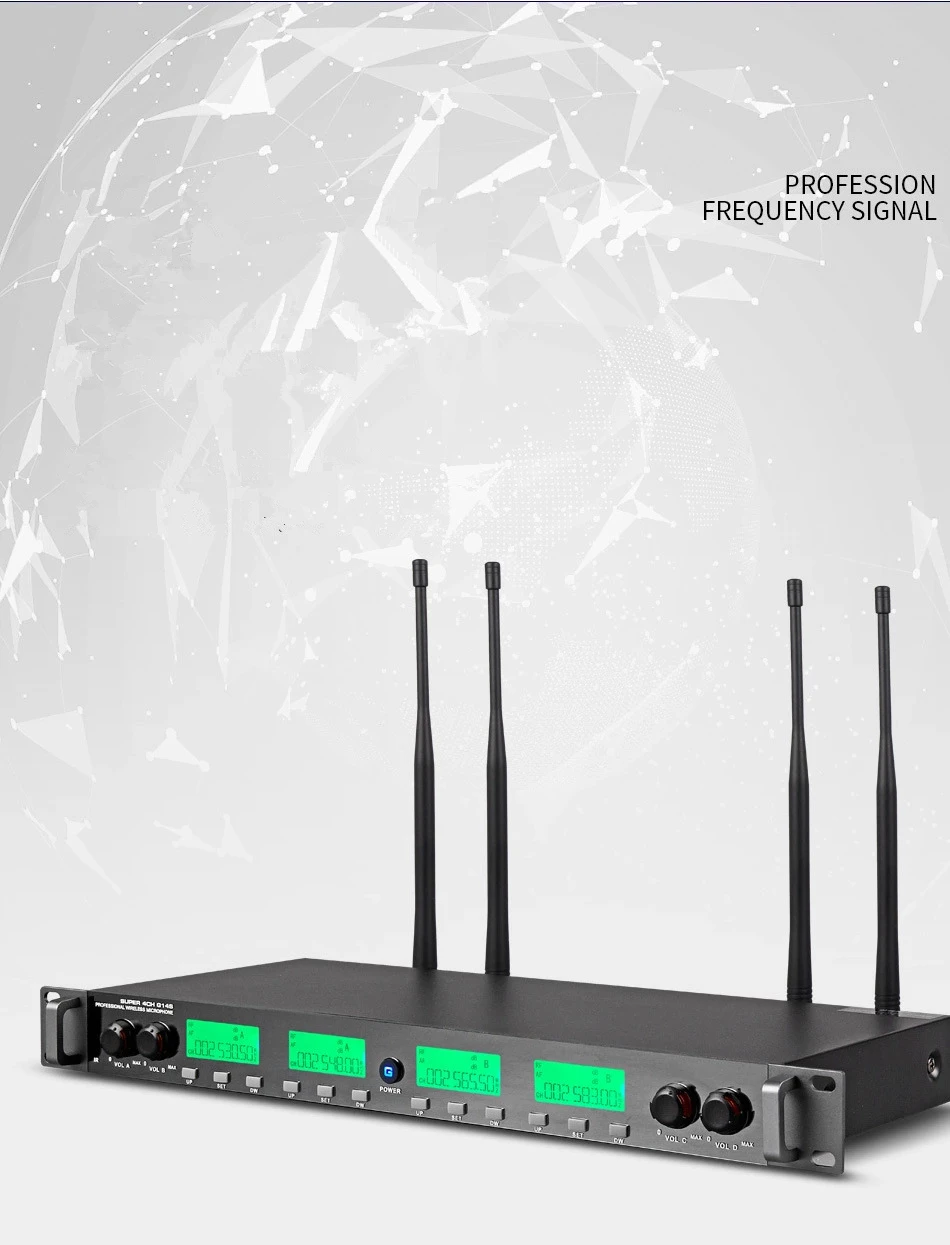

Receiver Oscillation mode: PLL (digital frequency synthesizer) Spurious suppression: ≥80dB Image suppression: ≥80dB Sensitivity:

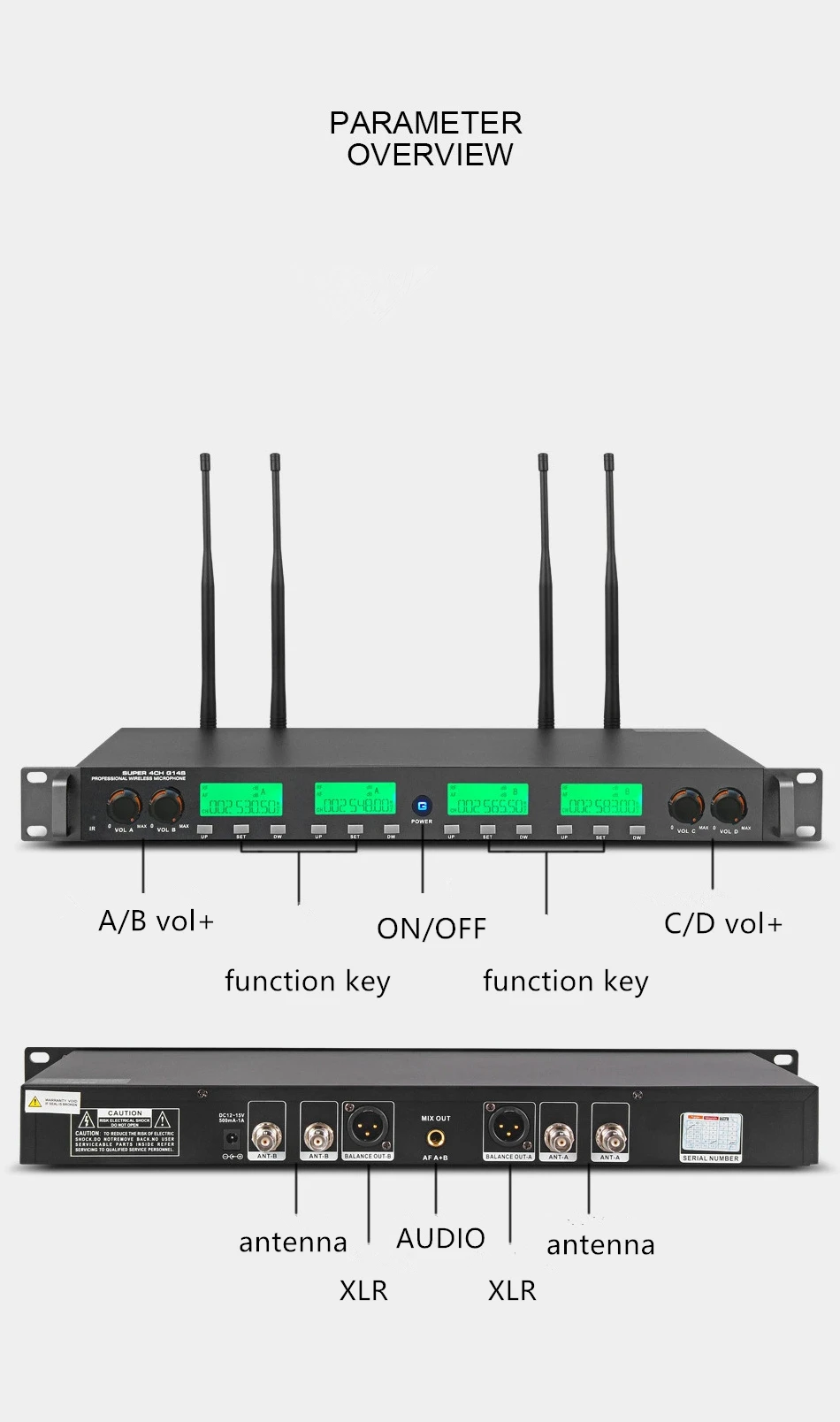

5dBuV Audio output level: balanced output (XLR output jack): 250mV/600Ω Unbalanced output (1/4″ output jack): 400mV/3KΩ Working

voltage: DC 13.5-16V Working current: ≤800mA

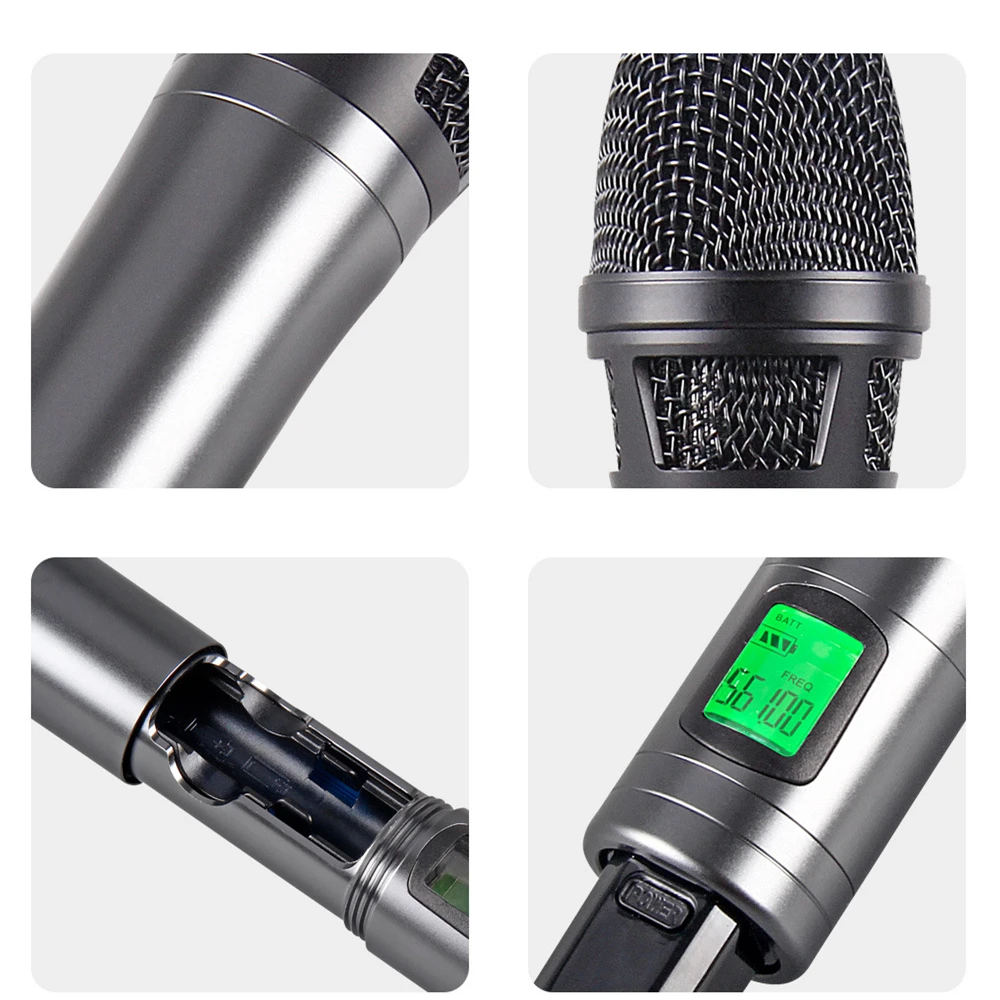

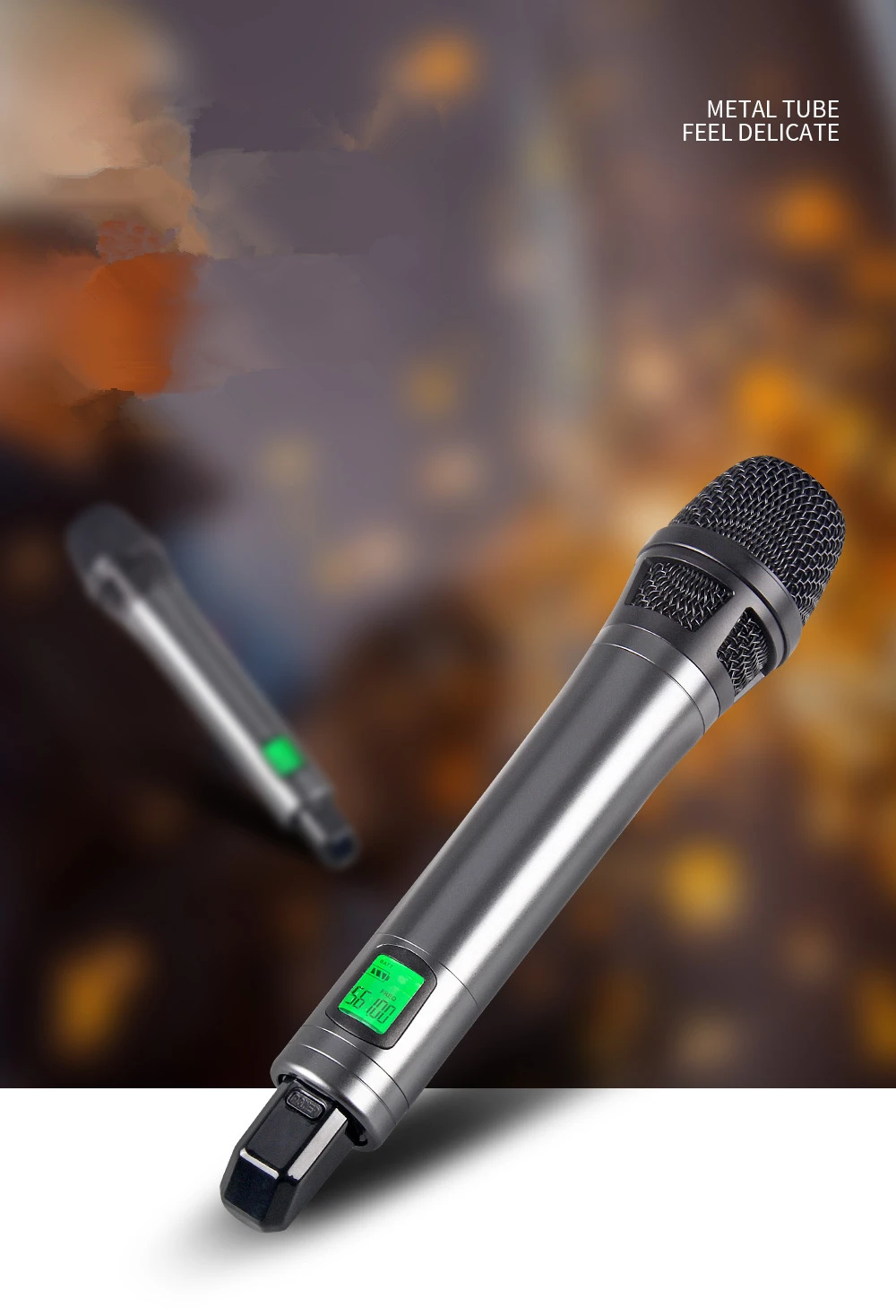

Handheld transmitter RF power output: 30mW max (depending on applicable national regulations) Oscillation mode: PLL (digital

frequency synthesizer) Transmit frequency stability: <30ppm Dynamic range: ≥100dB (A) Frequency response: 50Hz-15KHz Maximum input

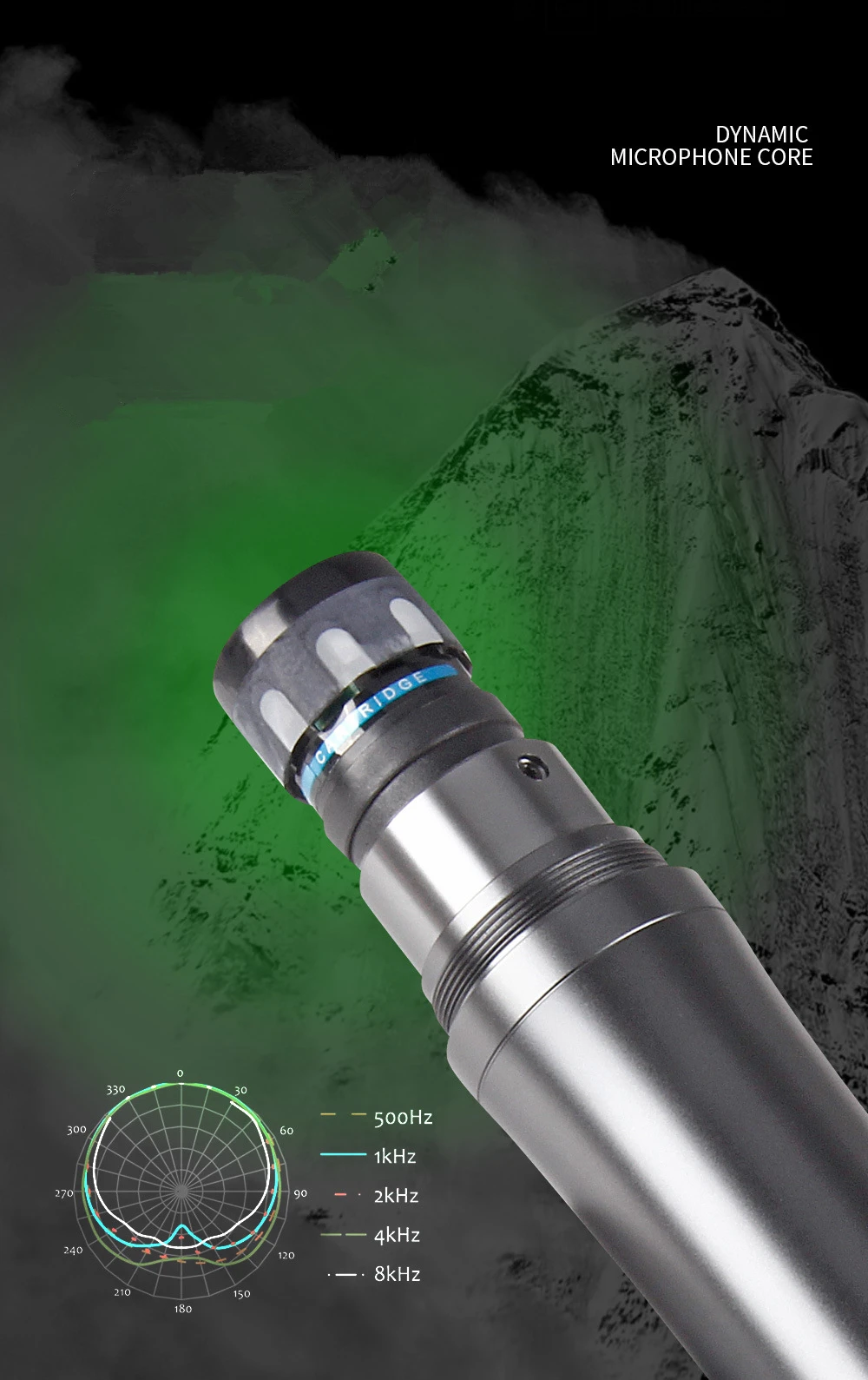

sound pressure: 130dB SPL Microphone pickup: dynamic
