Product Introduction

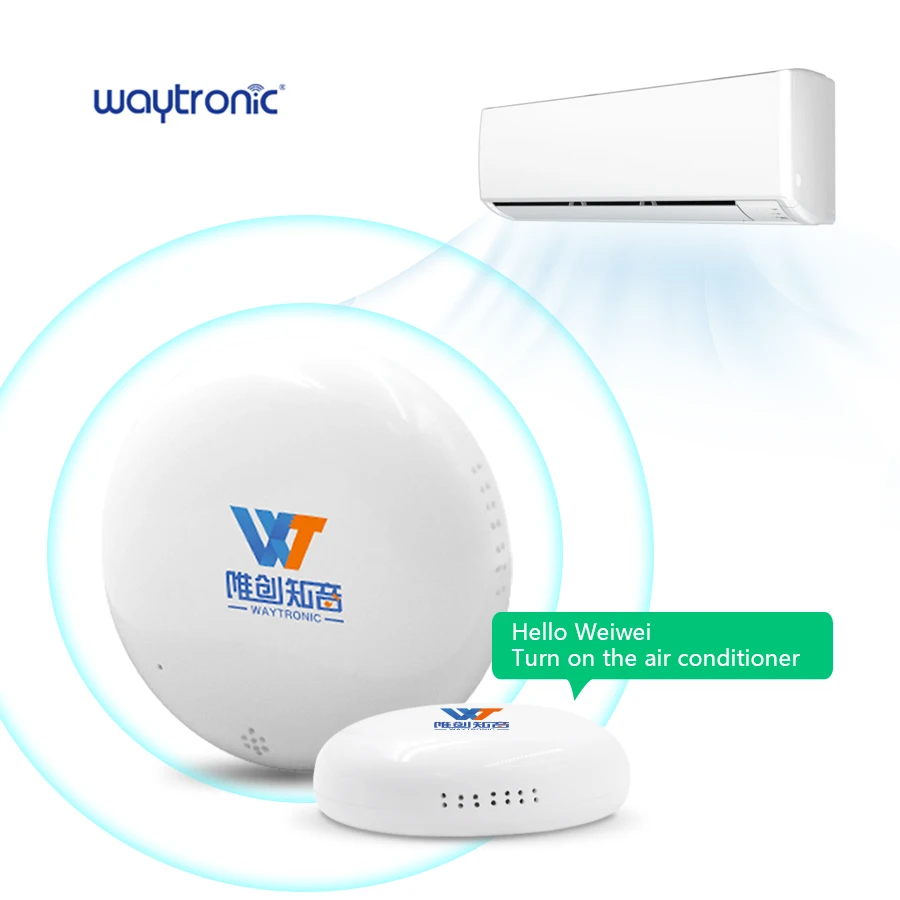

This product adopts an intelligent voice control module, combined with a high-sensitivity storage microphone, can control the air conditioner through voice commands, and automatically turn off the air conditioner when there is no activity in the detection area, turn off the air conditioner at regular intervals, and turn off the lights to turn off the air conditioner function. The product is simple and compact in appearance, easy to operate and easy to use. It is suitable for intelligent energy-saving control of air conditioners in companies, office buildings, government offices and home environments.

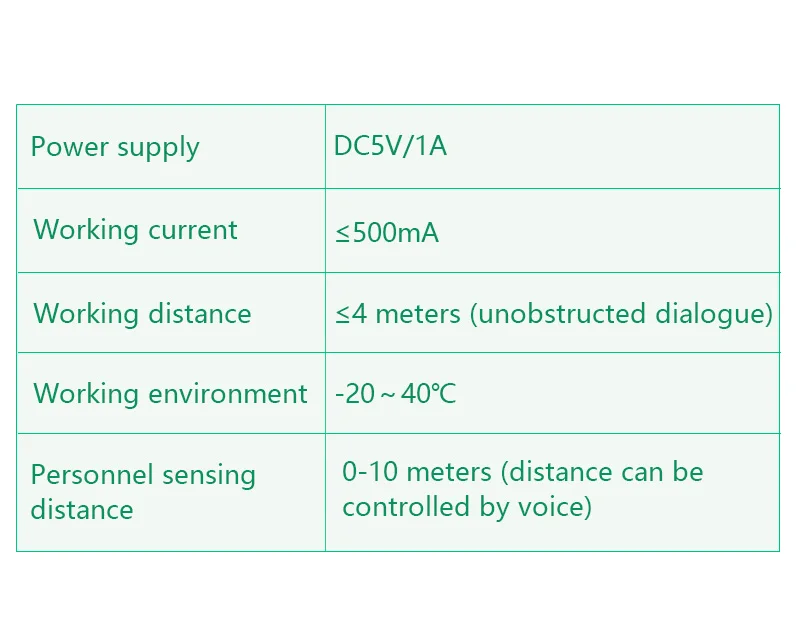

Product Features
|
Power Supply
|
DC5V/1A
|
|
Working Current
|
≤500mA
|
|
Working Distance
|
≤ 2m (quiet environment, no shelter dialogue)
|
|
Working Temperature
|
-20～40℃
|
|
Sensing Distance
|
0-8 m (distance can be controlled by voice)
|
|
Entry Instruction
|
Reply Content
|
Function
|
Indicator Status
|
|
Hello Weiwei
|
I’m here
|
Wake up device
|
The red light is on
|
|
Matching air
conditioner |
Please press the power button of the air conditioner
|
Remote control learning
|
The red light is on
|
|
Turn on the air
conditioner |
The air conditioner has
been turned on for you |
Turn on the air conditioner
|
The red light is on
|
|
Air conditioning
instruction query |
Common air
conditioning instructions are |
Introduction of air conditioning instructions
|
The red light is on
|
|
Mode switching
|
Available modes are
|
Introducing available modes
|
The red light is on
|
|
Indicator status
|
Current state
|
|
White light on
|
standby
|
|
Flash the white light twice
|
Turn off the air-conditioning countdown
|
|
The red light is on.
|
Wait to receive voice commands
|
|
Red light flash
|
Receive voice commands and execute them
|
|
The red and white lights flash alternately
|
Test mode
|

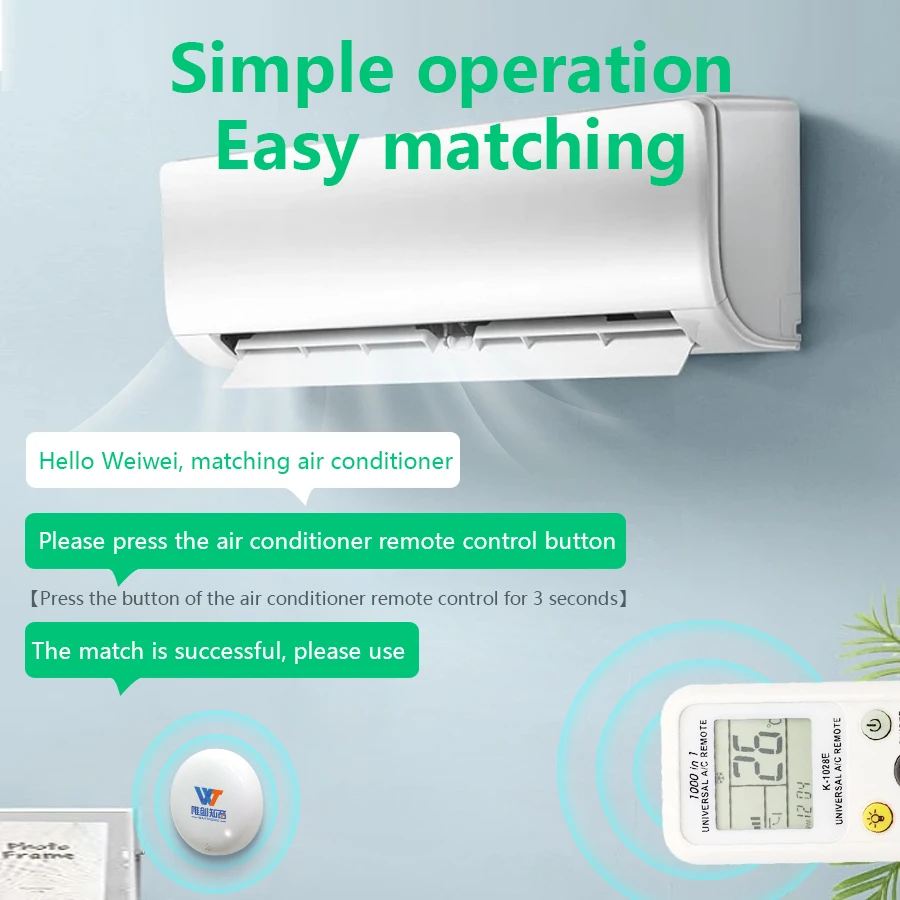

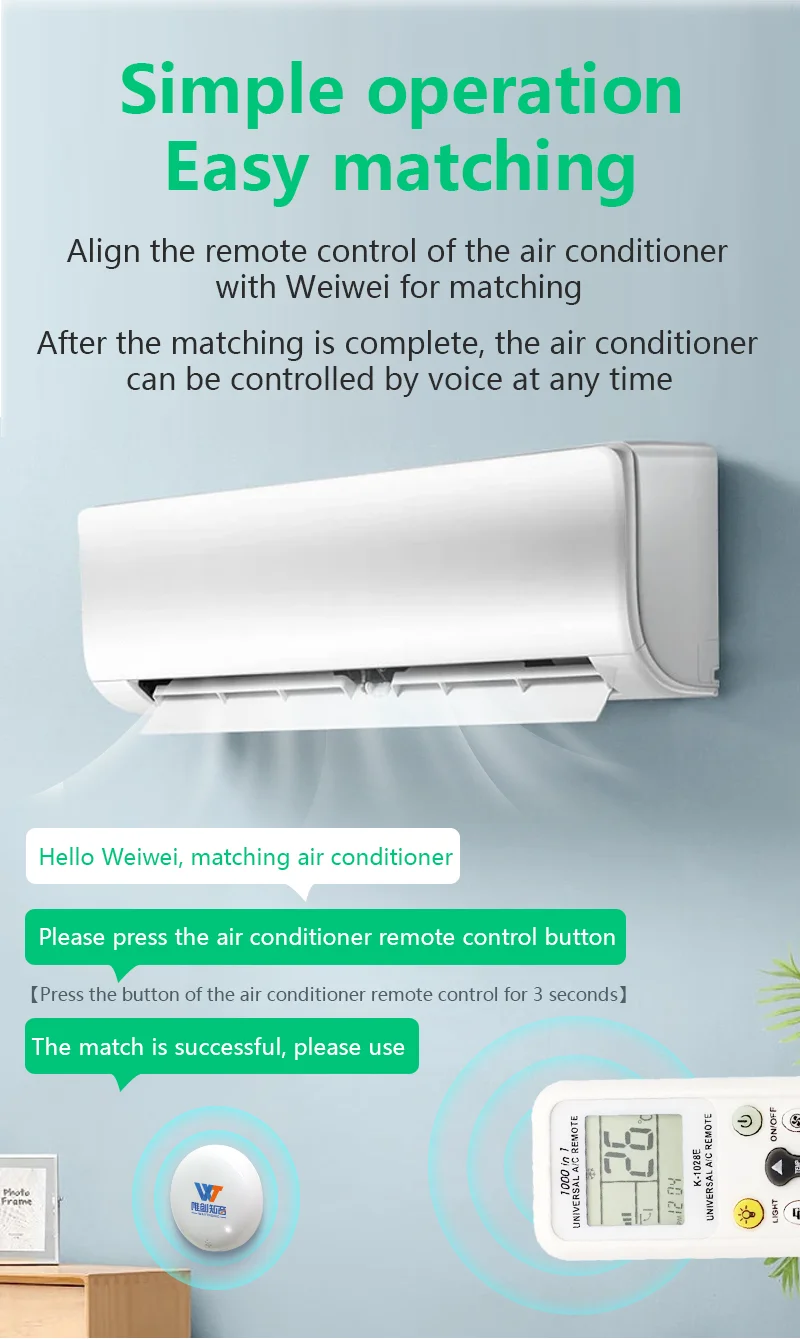

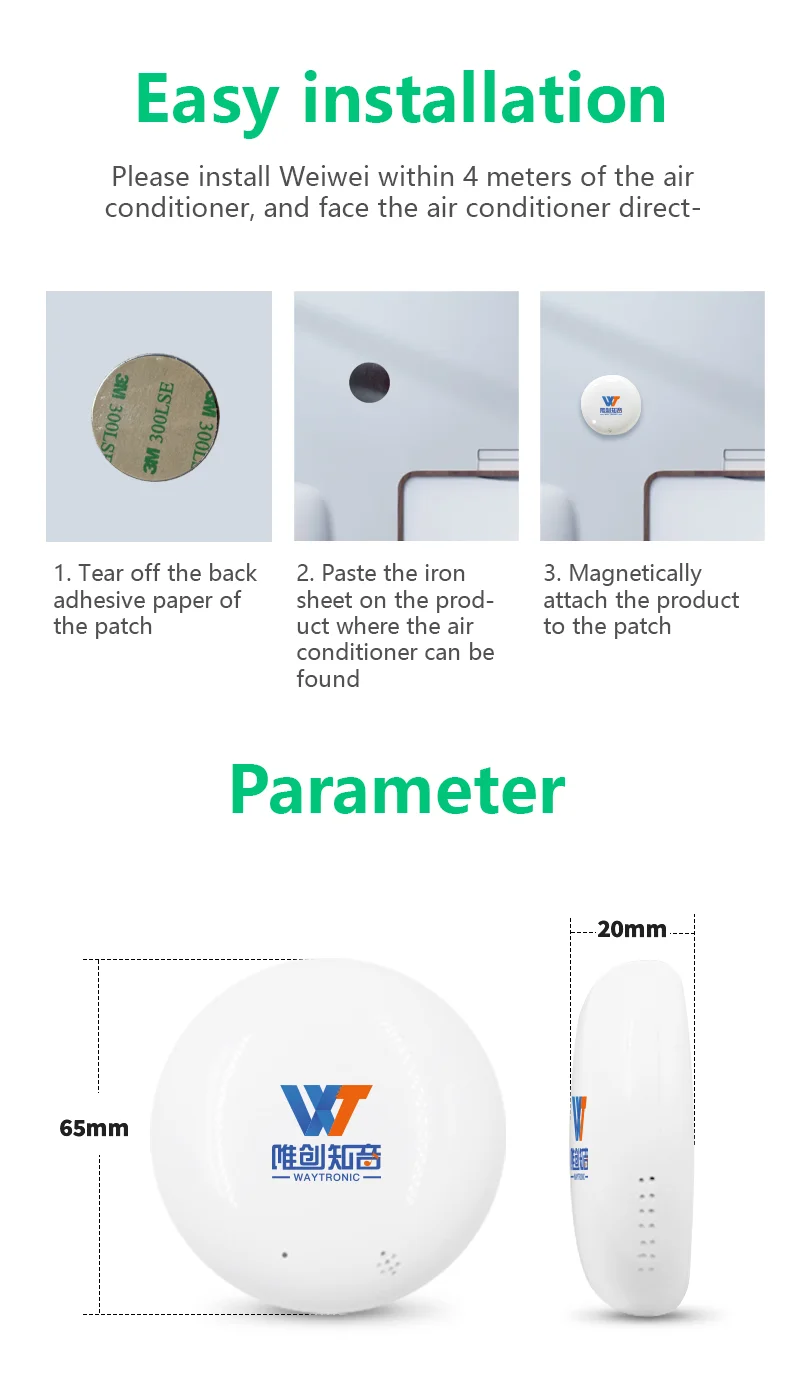

(1) Matching of air conditioning * Use 5V power supply to connect the product. * After power-on, the white indicator light is on, and say “Hello Weiwei” to wake up the product. * Say “match the air conditioner”, according to the voice instruction, use the air conditioner remote control to aim at the Z11 product and press the open key. * The voice prompts “successful match” to complete remote control learning. * After completing the matching, use voice entries to wake up the product. * Adjust the proper position of the product, and the air conditioner can be stably controlled after the voice command is issued before installation. (Turn on/off air conditioning) (2) Search air conditioning * After power-on, the white indicator light is on, and say “Hello Weiwei” to wake up the product. * Say “search air conditioning” product to start automatic search, please place the product under the air conditioning or directly opposite the position. * After searching the air conditioner, the air conditioner will have a display reaction or “drip” sound prompt. * When it is confirmed that the air conditioner has action or sound prompt, please say “stop searching” * Use voice terms to wake up the product after completing the search pairing. * Adjust the proper position of the product, and the air conditioner can be stably controlled after the voice command is issued before installation. (Turn on/off air conditioning)
