Product Description
|
Name
|
1CH Tuya Switch WiFi Switch Module Smart life APP Remote Control 1Gang Inching Switch Self-locking Smart Home
|
|
Max Current
|
10A/220W
|
|
Voltage
|
AC/DC 7-32V RF 1CH
|
|
APP
|
Tuya/Smart Life
|
|
Transportation Mode
|
Wifi + RF (
rf remote control is not included) |
Tuya Smart Life DC 5V 12V 24V 32V Wifi Switch Intelligent Module inching mode RF433 Remote Control Work with Alexa Google Home
This product is a wireless momentary(inching) switch. Users can add the device to the APP in order to remotely control connected home appliances or power circuits.
Note:The relays are switches without output, the power supply input (DC) just for the PCBA.
Supported functions include:
*Remote turn on/off
*Timing Schedules
*Device Sharing
*Group Management
*Works with Amazon Echo, Echo Dot, Amazon Tap
*Works with Google Home
*Timing Schedules
*Device Sharing
*Group Management
*Works with Amazon Echo, Echo Dot, Amazon Tap
*Works with Google Home

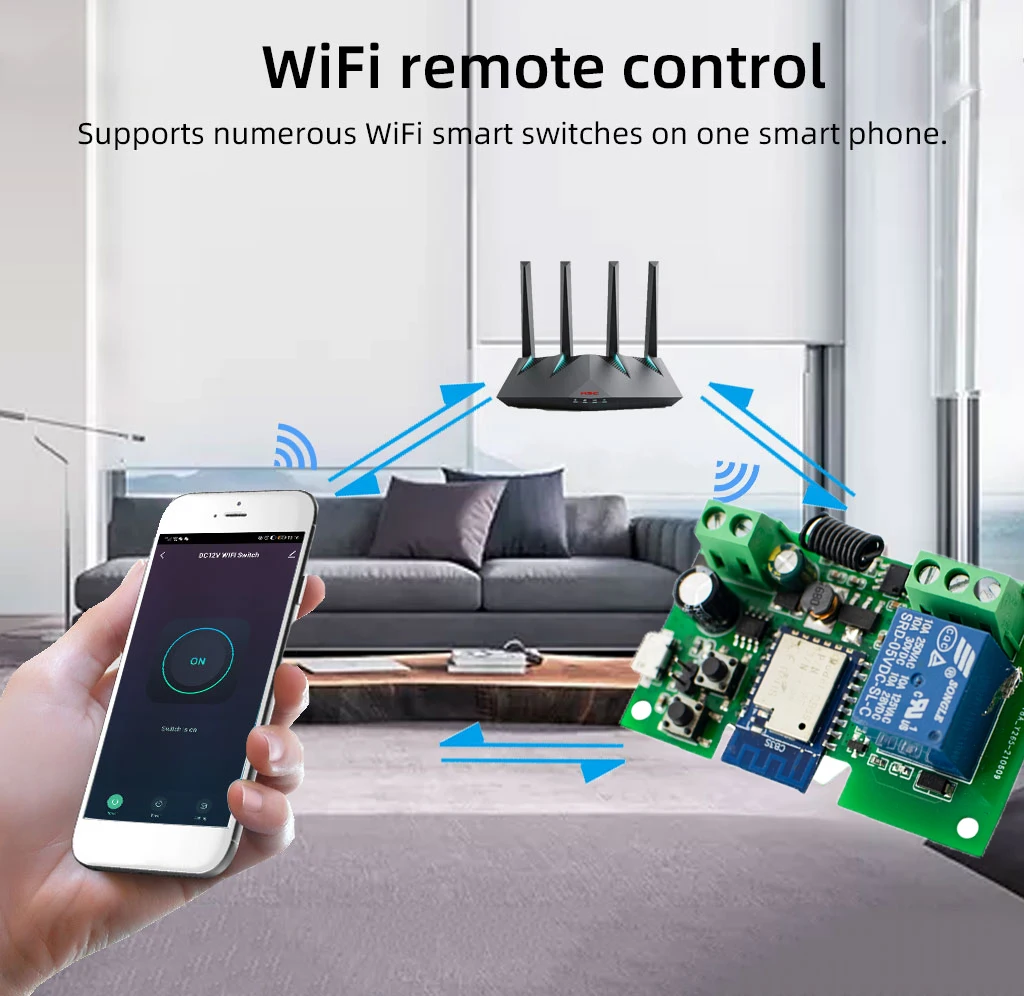

Remote Control
The product enables remote control of home appliances through the APP , available on both Android and iOS.
Inching mode
In inching mode, you can have two wiring ways to select: -Turn on 0.7s and then auto-off /Turn off 0.7s and then auto-on.
How to change the Inching time on the APP?
Enabling this feature will put the device in an automatic state.Each time the device is switched on,it will automatically switch
off after a set period of time. The time range is 1-3659s.
off after a set period of time. The time range is 1-3659s.
Schedule
Work with Alexa and Google Home
This product is compatible with Amazon Alexa. You can ask Alexa to control the device with the following voice commands.
Try out these phrases ( {deviceName} should be the name of your device):
“Alexa, turn on {deviceName}”
“Alexa, turn off {deviceName}”
“Alexa, schalte Ger?tename ein”
“Alexa, schalte Ger?tename aus”
Also you can ask Google Home to control the device with the following voice commands.
“hey, google, turn on {deviceName}”
“OK, google, turn off {deviceName}”
Try out these phrases ( {deviceName} should be the name of your device):
“Alexa, turn on {deviceName}”
“Alexa, turn off {deviceName}”
“Alexa, schalte Ger?tename ein”
“Alexa, schalte Ger?tename aus”
Also you can ask Google Home to control the device with the following voice commands.
“hey, google, turn on {deviceName}”
“OK, google, turn off {deviceName}”
Smart switch, bid farewell to traditional switching methods
Description
* Brand Name: Scimagic-RC
* Certification: CE
* Origin: CN(Origin)
* State of Assembly: Ready-to-Go
* Model Number: Tuya Smart Life DC5V 12V 24V 32V Inching Self-Locking Relay Module
* Compatibility: All Compatible
* Camera Equipped: No
* Input voltage: DC/AC 7-32V
* Max.Current: 2200W/10A
* WIFI Standard: WIFI 2.4ghz b/g/n(Don’t support 5G)
* Working temperature: -20-70℃
* Size: 1ch 69*41*20mm,2ch 120*38*25mm
* Feature 1: Inching mode

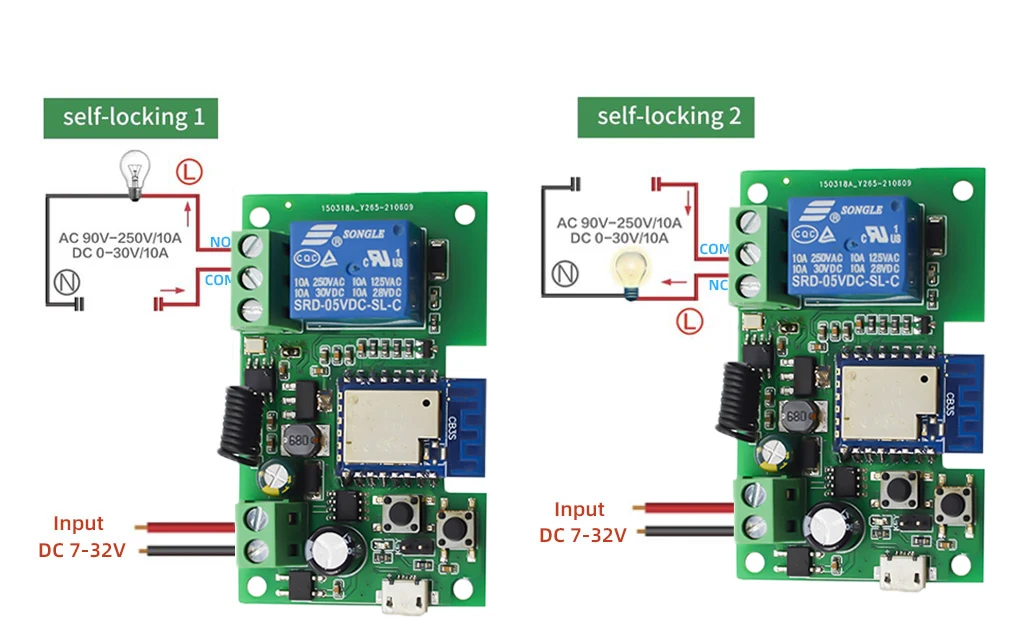

* Feature 2: Selfing-lock mode
* RF: support RF433Mhz
Details Images
For Access

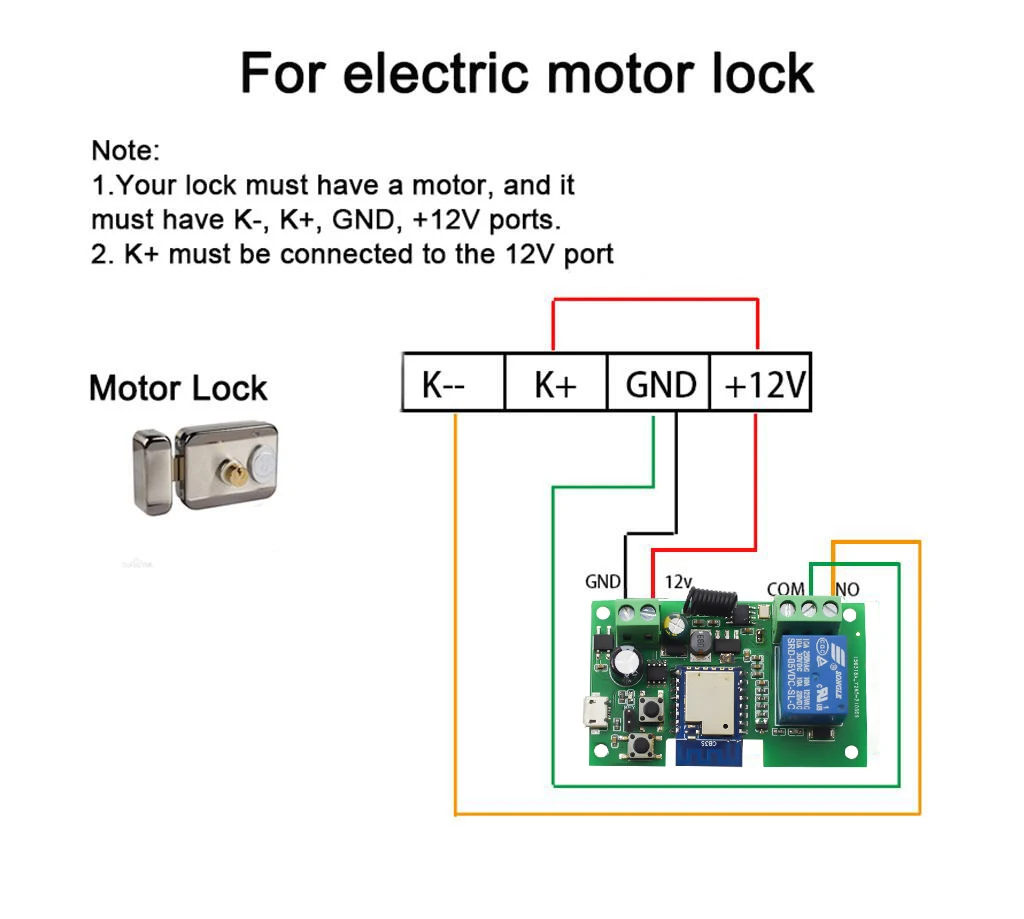

For electric motor lock
